BuraTAL T4 9650/T4

Features

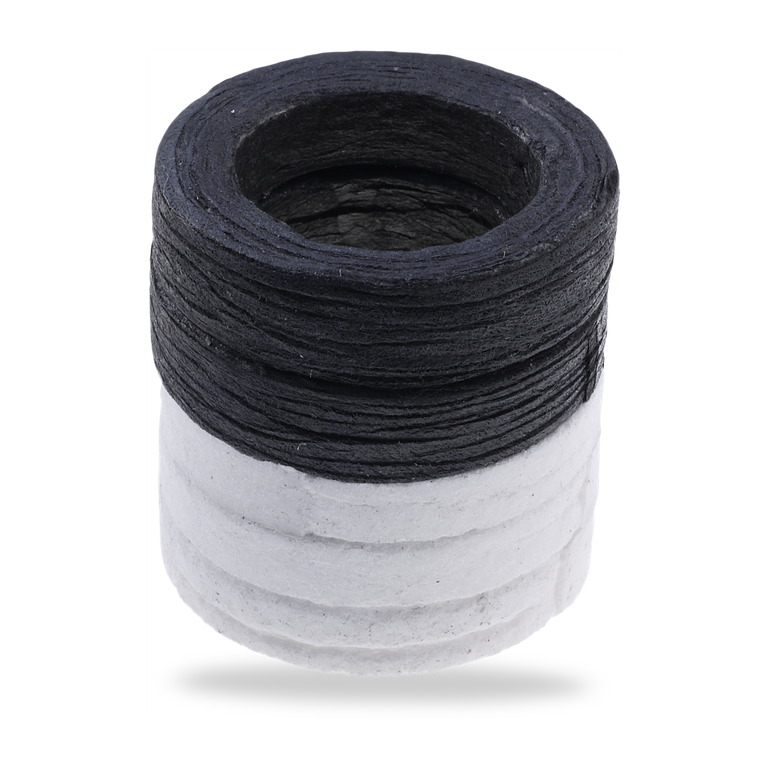

The BuraTAL T4 9650/T4 an innovative new packing set made from high quality, impregnated non-wovens. It consists of the following components:
  • Two carbon fiber non-woven rings impregnated with a special PTFE/graphite compound on the atmospheric side.
  • Three aramid non-woven sealing rings on the product side impregnated with PTFE to ensure very high cross-sectional stability.

The packing set is especially suitable in applications that demand elimination of contamination by the media and where high gas sealing performance with low friction is required.

Advantages

  • Dimensionally stable
  • High gas tightness
  • Minimal friction coefficients
  • Prevents contamination of the media

Operating range

Valves
Pressure: p = max. 250 bar
for TA-Luft:
  • without live-loading System 30 bar
  • with live-loading System 63 bar
Sliding velocity: vg = 2 m/s

Temperature
  • Continuous operation: t = -50 °C … +250 °C
Chemical resistance: pH = 1 … 14
Resistant to almost all organic and inorganic acids, alkalis, oils and solvents.

Standards and approvals

  • TA Luft

Variants

9650/T4B (with Live-Loading System)

Forms of supply

  • Customized packing sets made from endless or split precompressed rings
  • Made to order
